Second hand

In this section you will find our range of second hand furnaces and facilities, fully revised and in perfect condition.
If you are interested in purchasing this type of furnaces or if you want to put on sale facilities, please contact us.

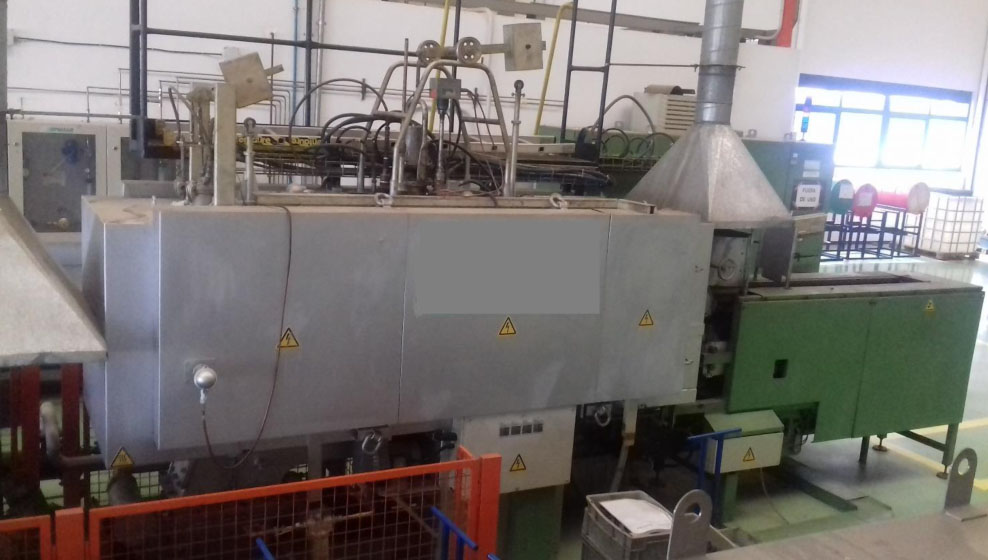

EROS RG-35.230 ROTATORY FURNACE

aumentar
aumentar
aumentar
aumentar
aumentar
aumentar

Continuous electric furnace with rotating retort and methanol cracker associated with it for quenching, cementation and carbonitruration.

Consisting of:

Horizontal axis cylindrical retort provided internally with helical blades of several entrances, located inside the furnace, with mechanism for the rotatory drive.

Chamber with electric heating by vertical radiant tubes, with loading and unloading hoppers on its front and rear respectively.

Temple tub with oil bath provided with automatic devices for agitation, heating and cooling; devices for filling and emptying, and automatic conveyor for the extraction of the treated pieces.

Pieces feeder consisting of an elevator and set of vibrators.

Control panel for automatic regulation of temperatures and all furnace operations.

Methanol cracker to be able to introduce it in the gas phase in the oven.

Characteristics::

- Built year: 1998.
- 6 months old.
- Heating power: 94 kW.
- Mechanical power: 6 kW.
- Endothermic gas consumption: 15 m³/h.
- Furnace maximum temperature: 950 °C.
- Oil temperature: 20-70 °C.
- Capacity of the oil tank: 2000 liters.
- Useful dimensions: Ø 480 x 3000 mm of length.
- Quenching production: 250 Kg/h.



Request more information

WELLMAN FURNACE FOR CEMENTATION, CARBONITRURATION, QUENCHING, RECOVERY…

aumentar
aumentar
aumentar
aumentar
aumentar

Characteristics:

- Two semicontinuous chambers furnace.
- Atmosphere control: Oxygen probe.
- Dimensions of load: 1.600 x 1.500 x 600 mm.
- Maximum load: 2.000 Kg.
- Work temperature: 600 / 950 °C.
- Heating: Radiant pipes.
- Oil tank: Tank for 16.000 L of oil. Adjustable temperature up to 120 °C.

Request more information

CIEFFE FURNACE + IPSEN WASHER - SOLD

aumentar
aumentar
aumentar
aumentar
aumentar
aumentar

Consisting of:

1 austeritation oven for quenching oil and cementation, size T 4.
- Inner chamber Dimensions: 610 x 910 x height 460 mm, maximum load 350 kg.
- Electric heating.
- Inner chamber in good order and mixture atmosphere turbine.
- Panel gas to generate the atmosphere.

1 IPSEN electric heating washer:
Very simple, with water shaking in the cask.

1 handling loads car.

Set of tools.

Request more information

BMI VACUUM OVEN OF GAS AND OIL TEMPLE - SOLD

Type: B64TH - 600 x 900 x 500 mm height.

increase
increase

Characteristics:

- It is 2001, it has 2 cameras, is able to anneal into gas and / or oil.
- Temperature up to 1250 ºC
- Capacity: 900 x 600 x 500 mm height
- Load 400 kg
- Equipped with 2 sets of roots and primary pumps and a diffusion pump
- Heating power 120 Kw
- Installed power 230 Kva
- Primary pump SAS Edwards GV250
- ROOTS pump SAS Edwards EH 2600
- Hot chamber pump EDWARDS GV80
- Hot chamber ROOTS pump EDWARDS EH500A
- High vacuum diffusion pump VARIAN VHS10
- Gas temper pressure 5 Bar
- Cooling turbine power 45 Kw
- PLC SIEMENS S 7
- Touch screen GRAPHTIL 10" type gas 5 Bar

Request more information

BMI VI65 IONIC NITRIDING OR PLASMA FURNACE

increase

Characteristics:

- Dimensions: Ø850x1500mm height
- Maximum load weight: : 1.500 Kg
- 2 containers
- Recent pc control

Request more information
